ZweiL® Halterung für Edelstahl-Möbelgriff zum Befestigen auf Glastür, 16 mm, ZL-2301-2016. Halterung aus feinstem Edelstahl V4A (SUS316) zum Befestigen von Edelstahlmöbelgriffen auf Glastür für exklusive Raumgestaltung und hochwertige Einrichtungen von Su

Exclusive Zwei L® bracket for attaching stainless steel handle to the glass door ZL-2301-2016

Application: Bracket made of the finest stainless steel V4A (SUS316) for attaching stainless steel furniture handles to glass doors for exclusive interior design and high-quality furnishings. Suitable for mounting stainless steel furniture handles ZL-2001 and ZL-2002 on a glass door. The stainless steel SUS316 gives the furniture fittings unique properties. The surface is partly high-gloss and partly satin, creating unique optical and tactile effects. The furniture handles are ideal for glass doors:

• On cruise ships
• On yachts
• In boats
• In private aircraft
• Outdoor area
• In coastal facilities
• In exclusive bathrooms
• In luxury facilities

Material: Made of solid, high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Fittings made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Seal: made of elastomer (TPE). Surface:

• Two L® stands for exclusive quality of the stainless steel surface
• The high-quality surface is elaborately processed and has a unique structure and appearance
• The lines are straight, clear and sharp
• The fittings appear solid and extremely high-quality

Assembly:

• The installation in a glass door is carried out using the screws included in the delivery ( see picture ).
• The mounting screws are also made of stainless steel
• Diameter of the hole in the glass is Φ5 mm for glass thickness 4 mm or 5 mm and Φ6 mm for glass thickness 6 mm

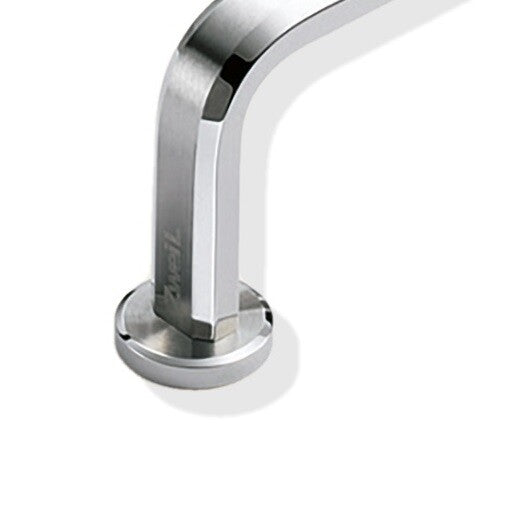

[caption id="attachment_36130" align="alignnone" width="420"] ZL-2301-2016 ZweiL bracket for stainless steel furniture handle for mounting on 16 mm glass doors. Installation[/caption] Characteristics:

• Weight: 18 g
• Size: 16 mm
• Fits the stainless steel furniture handles ZL-2001 and ZL-2002
• For glass thickness 4 mm, 5 mm and 6 mm
• Elaborately finished surface
• Corrosion-resistant
• Exclusive, high-quality look
• Available with diameter: Φ16 mm and Φ25 mm

Dimensions: For further dimensions and details see technical drawing .

• Bracket: ɸ16 mm
• Seal: ɸ14 mm
• Truss Head Screw: M4 x 16mm

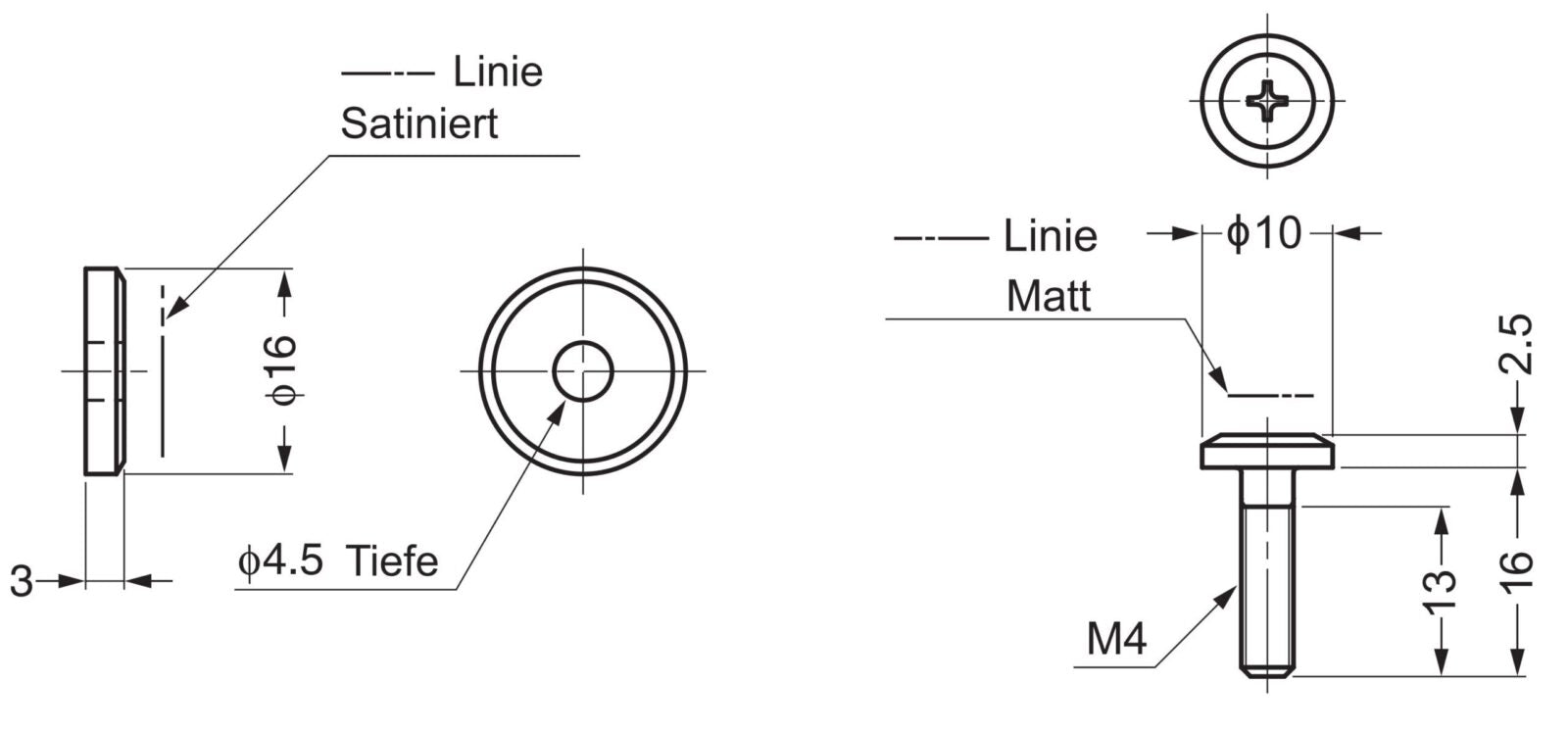

[caption id="attachment_36117" align="alignnone" width="420"] ZL-2301-2016 ZweiL bracket for stainless steel furniture handle for mounting on 16 mm glass doors. Technical drawing[/caption] Included in delivery:

• Two pieces of stainless steel bracket SUS316 (V4A)
• Four pieces of seal
• Two truss head screws (made of stainless steel)

Watch product video: Manufacturer reference number:

• Article number: 100-010-978
• Article name: ZL-2301-2016

Manufacturer: SUGATSUNE / LAMP® (Japan)
